X715 Bed Type Milling Machine

  • X715 Bed Type Milling Machine
  • X715 Bed Type Milling Machine
  • X715 Bed Type Milling Machine
  • X715 Bed Type Milling Machine

X715 Bed Type Milling Machine

    Unit Price: 33500 USD
    Min. Order: 1 Set/Sets
    Packaging: Packed in Tito and plywood
    Productivity: 50~100SET
    Brand: BORUI CNC
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: 50
    Certificate: CE
    HS Code: 8459590000
    Port: QINGDAO,SHANGHAI,NINGBO

Basic Info

Model No.: X715

Product Description

X715 Heavy duty rotary head type universal milling machine

Product Description

Heavy duty rotary head type universal milling machine
Product description:
1.Horizontal and vertical milling machine with head swivel +/-360 degrees;
2.Rectangular guideways
3.Large table load, with control panel
4.automatic lubrication system
5.CE electrical componets.
Product main technical parameters:


X712 2 Jpg

Product main technical parameters:


unit

X715

TABLE :

Table size

mm

2100x500

T slot

no

4

Size ( Width )

mm

20

Centre distance

mm

100

Max. load of Table

kg

2000

machining range :

Longitudinal travel

mm

1500

Cross travel

mm

670

Vertical travel

mm

670

MAIN SPINDLE :

Spindle taper

ISO50 7:24

spindle speed /step

rpm

35-1345/12

distance from spindle axis to column surface

mm

610

distance from spindle nose to table surface

mm

0-670

FEEDS :

Longitudinal/cross feed

mm / min

20-1800/stepless

Vertical

10-900/stepless

Longitudinal/cross rapid speed

mm / min

3500

Rapid Traverse vertical

1750

POWER :

main motor

kw

7.5

feed motor

kw

2

coolant motor

w

550

others

package dimension

cm

228x228x282

overall dimension

cm

330x238x275

machine weight

kg

7300


Details Display

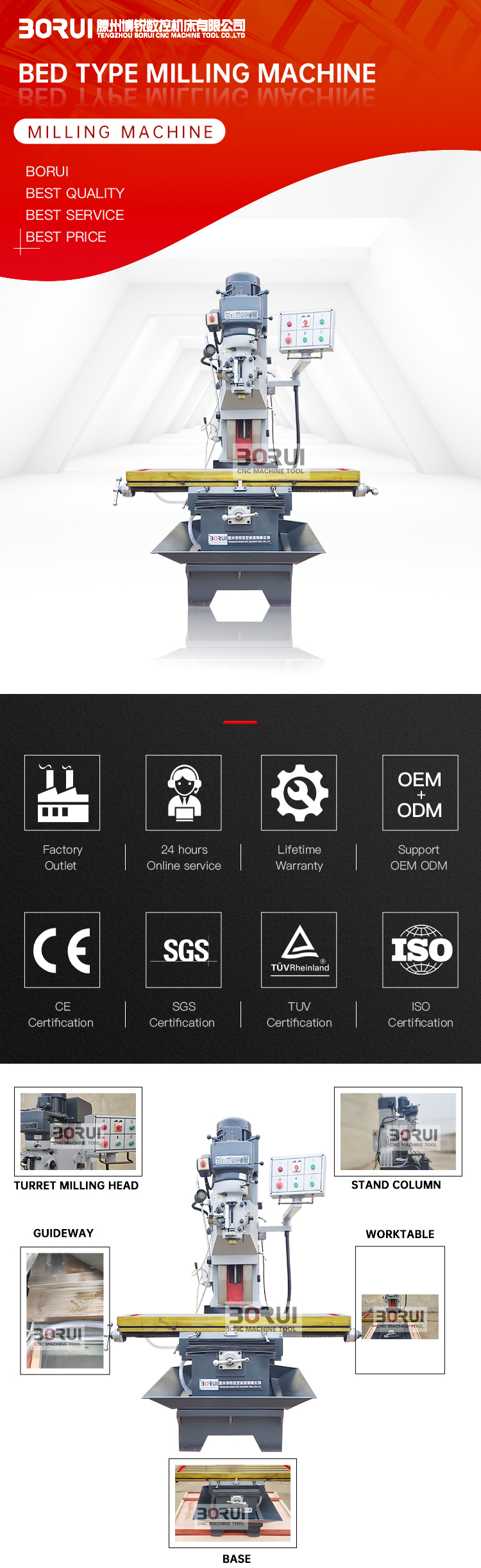

X712 1 Jpg Png


X712 2 Jpg Png
